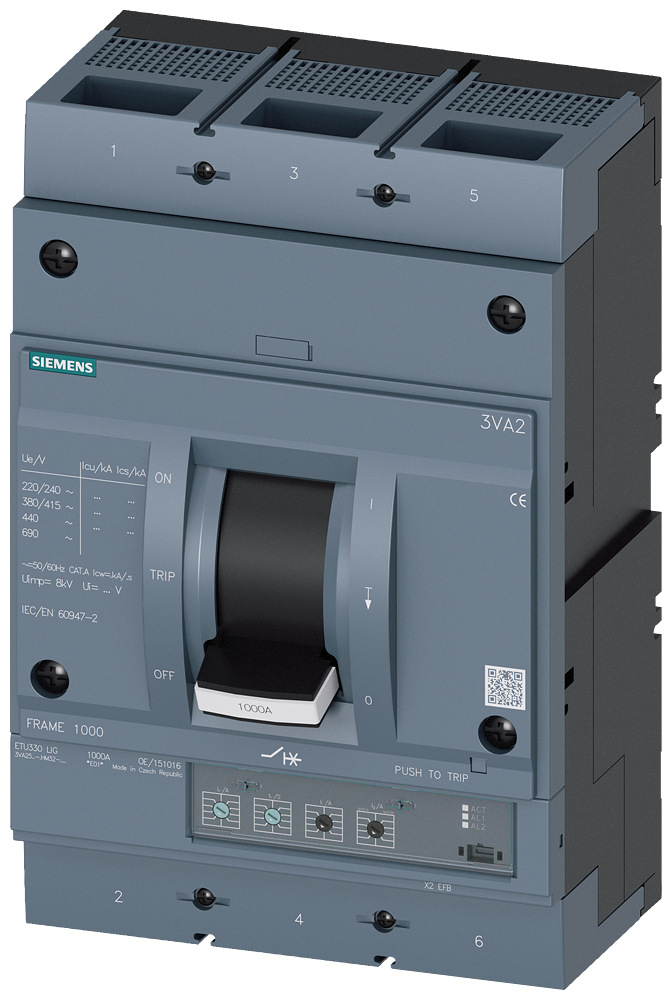

BRKR 3VA25 3P 1000A 55KA ETU3-LIG NUT
by Siemens
Original price
$2,541.87
-
Original price
$2,541.87
Original price
$2,541.87
$2,541.87
-
$2,541.87
Current price
$2,541.87
SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA25 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 1000A 3-POLE Icu: (25KAIC AT 690V) (55KAIC AT 415V). ETU330 TRIP UNIT LIG. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER.. DIMENSIONS (W x H x D) IN: 8.3 x 12.6 x 6.1.
| Item | Value |
|---|---|
| Country of Origin | CZ |
| Number of poles | 3 |
| Rated voltage | 690 V |
| Motor drive optional | false |
| Motor drive integrated | false |
| Degree of protection (IP) | IP40 |
| Rated permanent current Iu | 1000 A |
| With switched-off indicator | false |
| Type of control element | Rocker lever |
| Overload release current setting | 400 A |
| Integrated earth fault protection | true |
| Complete device with protection unit | true |
| With integrated under voltage release | false |
| DIN rail (top hat rail) mounting optional | true |
| Suitable for DIN rail (top hat rail) mounting | true |
| Number of auxiliary contacts as change-over contact | 0 |
| Adjustment range undelayed short-circuit release | 1500 A |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Position of connection for main current circuit | Front side |
| Device construction | Built-in device fixed built-in technique |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55 kA |
| Type of electrical connection of main circuit | Screw connection |
