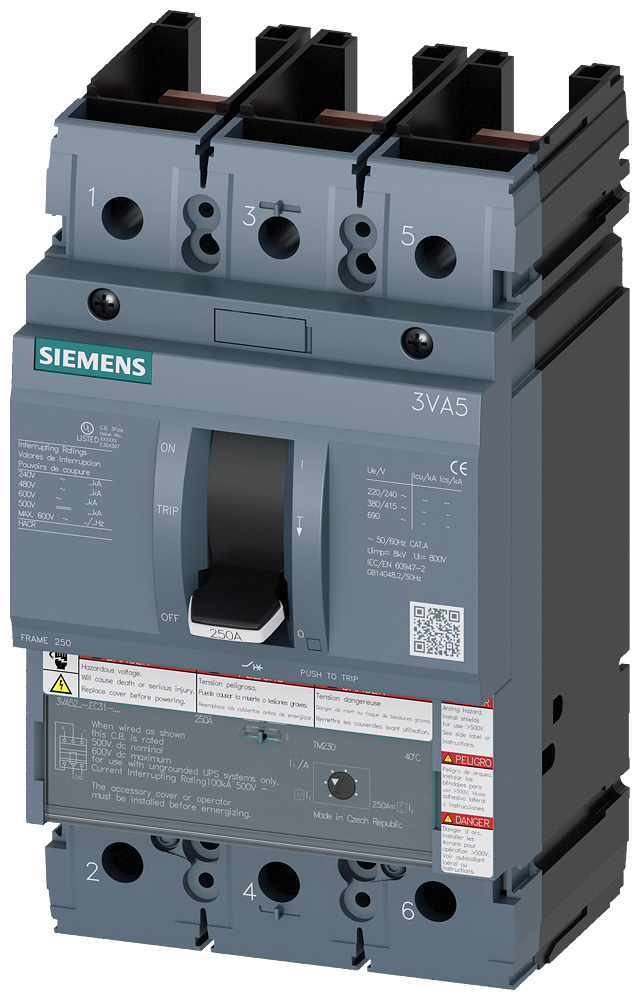

BRKR 3VA52 3P 80A 35KA ATAM
by Siemens
Original price
$484.95
-
Original price
$484.95
Original price
$484.95
$484.95
-
$484.95
Current price
$484.95
MLFB Lo
| Item | Value |
|---|---|
| Country of Origin | CZ |
| Number of poles | 3 |
| Rated voltage | 690 V |
| Motor drive optional | true |
| Motor drive integrated | false |
| Degree of protection (IP) | IP40 |
| Rated permanent current Iu | 80 A |
| With switched-off indicator | false |
| Overload release current setting | 56 A |
| Type of control element | Rocker lever |
| Integrated earth fault protection | false |
| Complete device with protection unit | true |
| With integrated under voltage release | false |
| DIN rail (top hat rail) mounting optional | true |
| Suitable for DIN rail (top hat rail) mounting | true |
| Type of electrical connection of main circuit | Other |
| Adjustment range undelayed short-circuit release | 400 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Other |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Device construction | Built-in device fixed built-in technique |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55 kA |
