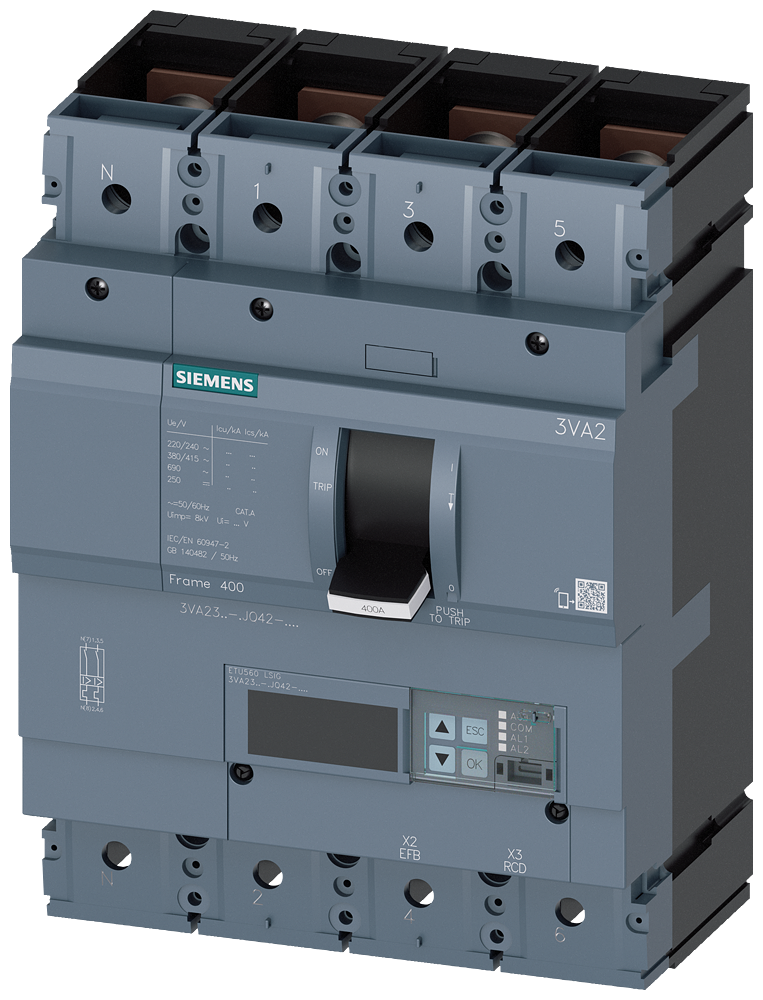

BRKR 3VA23 4P 250A 150KA ETU5-LSIG NUT
by Siemens
Original price
$2,115.73
-
Original price
$2,115.73
Original price
$2,115.73
$2,115.73
-
$2,115.73
Current price
$2,115.73
SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA23 FRAME WITH EXTREMELY HIGH (CLASS L) BREAKING CAPACITY. 250A 4-POLE Icu: (25KAIC AT 690V) (150KAIC AT 415V). ETU560 TRIP UNIT LCD LSIG. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 7.2 x 9.8 x 5.4.
| Item | Value |
|---|---|
| Country of Origin | CZ |
| Number of poles | 4 |
| Rated voltage | 690 V |
| Motor drive optional | true |
| Motor drive integrated | false |
| Degree of protection (IP) | IP40 |
| Rated permanent current Iu | 250 A |
| With switched-off indicator | false |
| Type of control element | Rocker lever |
| Overload release current setting | 100 A |
| Integrated earth fault protection | true |
| Complete device with protection unit | true |
| With integrated under voltage release | false |
| DIN rail (top hat rail) mounting optional | true |
| Suitable for DIN rail (top hat rail) mounting | true |
| Adjustment range undelayed short-circuit release | 375 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Position of connection for main current circuit | Front side |
| Device construction | Built-in device fixed built-in technique |
| Adjustment range short-term delayed short-circuit release | 150 A |
| Type of electrical connection of main circuit | Screw connection |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 150 kA |
