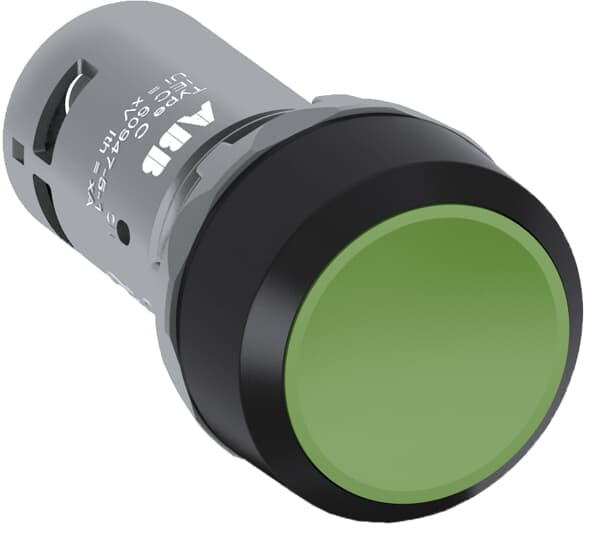

CP1-10G-01 Pushbutton (Qty. 10)

CP1-10G-01 Pushbutton (Qty. 10)

by ABB
$64.38 - $64.38
$64.38
$64.38 - $64.38
$64.38

The CP1-10G-01 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Green - Non-illuminated - Black Plastic - 1NC - 0 NO - 1 NC - 300 V



Ordering
Item Value
Minimum Order Quantity 10 piece
Customs Tariff Number 8536501999

Dimensions
Item Value
Product Net Width 0.03 m
Product Net Height 0.03 m
Product Net Depth / Length 0.055 m
Product Net Weight 0.018 kg

Technical
Item Value
Ambient Air Temperature Operation -25 ... +70 °CStorage -40 ... +85 °C
Color Green
Actuator Type Flush
Bezel Material Black Plastic
Illumination Non-illuminated
Function Momentary
Number of Auxiliary Contacts NC 1
Number of Auxiliary Contacts NO 0
Degree of Protection Front IP66Front IP67Front IP69KTerminals IP20
Enclosure Type NEMA Type1Type12Type13Type3RType4Type4X
Pollution Degree 3
Rated Insulation Voltage (Ui) 300 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50 / 60 Hz
Rated Operational Voltage Maximum 300 V
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A(125 V) 0.2 A
Rated Operational Current AC-15 (Ie) (240 V) 1 A
Power Loss Maximum 2.5 W
Mechanical Durability 0.5 million
Connecting Capacity Flexible with Ferrule 1 x 0.5...1.5 mm²Flexible with Ferrule 2 x 0.5...1.5 mm²Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²Flexible 1 x 0.5 ...1.5 mm²Flexible 2 x 0.5 ...1.5 mm²Solid 1 x 0.5...1.5 mm²Solid 2 x 0.5...1.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.8 N·m
Wire Stripping Length 6 mm

Technical UL/CSA
Item Value
Connecting Capacity UL/CSA 1x 22...14 AWG2x 22...14 AWG

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 0626 5
RoHS Information 2CMT2015-005451
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Classifications
Item Value
Object Classification Code S
eClass V11.0 : 27371228
E-Number (Finland) 2312717
E-Number (Sweden) 3705396
