C3SS2-10B-20 Selector Switch (Qty. 10)
by ABB
Original price
$72.39
-
Original price
$72.39
Original price
$72.39
$72.39
-
$72.39
Current price
$72.39

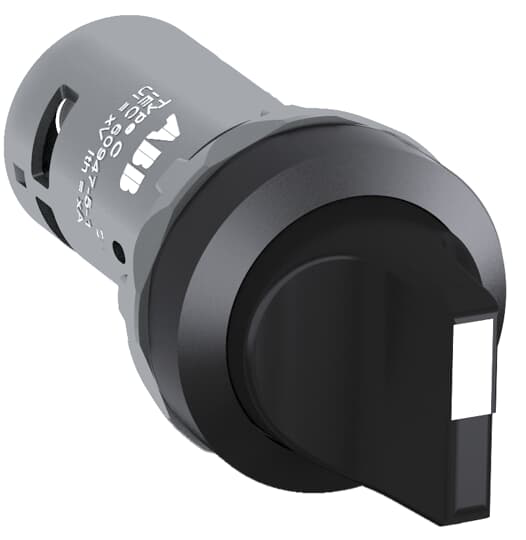

The C3SS2-10B-20 Selector Switch is: Compact - Selector Switch - 3-position - Momentary - Short handle - Black - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V
| Item | Value |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536501999 |
| Item | Value |
|---|---|
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.072 m |
| Product Net Weight | 0.024 kg |
| Item | Value |
|---|---|
| Ambient Air Temperature | Operation -25 ... +70 °CStorage -40 ... +85 °C |
| Color | Black |
| Actuator Type | Short handle |
| Bezel Material | Black Plastic |
| Illumination | Non-illuminated |
| Function | Momentary |
| Sub-Function | 3-position |
| Spring Return From | A and C to B |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Degree of Protection | Front IP66Front IP67Front IP69KTerminals IP20 |
| Enclosure Type NEMA | Type1Type12Type13Type3RType4Type4X |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A(125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 1 A |
| Power Loss | Maximum 5 W |
| Mechanical Durability | 0.5 million |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm²Flexible with Ferrule 2 x 0.5...1.5 mm²Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²Flexible 1 x 0.5 ...1.5 mm²Flexible 2 x 0.5 ...1.5 mm²Solid 1 x 0.5...1.5 mm²Solid 2 x 0.5...1.5 mm² |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
| Item | Value |
|---|---|
| Connecting Capacity UL/CSA | 1x 22...14 AWG2x 22...14 AWG |
| Item | Value |
|---|---|
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 0626 5 |
| RoHS Information | 2CMT2015-005451 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Item | Value |
|---|---|
| Object Classification Code | S |
| eClass | V11.0 : 27371243 |
| IDEA Granular Category Code (IGCC) | 5215 >> Selector Switch Complete Assemblies |
| E-Number (Finland) | 2312909 |
| E-Number (Norway) | 4372795 |
| E-Number (Sweden) | 3711310 |
