OT800E04P SWITCH-DISCONNECTOR

OT800E04P SWITCH-DISCONNECTOR

by ABB
$803.79 - $803.79
$803.79
$803.79 - $803.79
$803.79

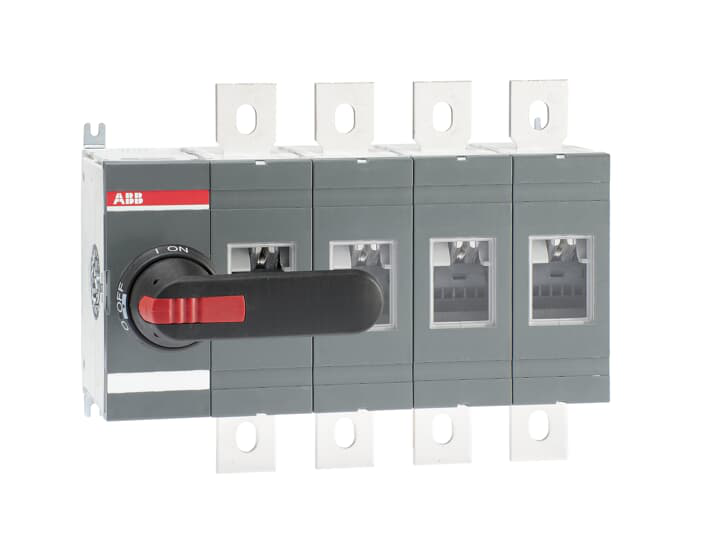

4-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
Environmental Information 1SCC301232D0201
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 331 mm
Product Net Height 250 mm
Product Net Depth / Length 140 mm
Product Net Weight 8 kg

Technical
Item Value
Rated Operational Current AC-21A (Ie) (380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A(1000 V) 800 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 250 kW(400 ... 415 V) 450 kW(500 V) 560 kW(690 V) 800 kW
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 800 A
Conventional Thermal Current (Ithe) Fully Enclosed 800 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 1000 V
Rated Operational Voltage Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm) (690 V) 80 kA
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 20 kA
Rated Conditional Short-Circuit Current (Inc) (800 A fuse, 500 V) 100 kA(800 A fuse, 690 V) 80 kA
Power Loss at Rated Operating Conditions per Pole 40 W
Pollution Degree 3
Handle Color Black
Handle Type Handle and shaft included
Fourth Pole Position Right Side
Fourth Pole Type Switched - Simultaneous Function
Switches Operating Mechanism Mechanism at the End of the Switch04 (Left Side)
Distance Between Phases Standard
Position of Line Terminals Top In - Bottom OutBottom In - Top Out
Operating Mode Front operated
Standards IEC 60947-3
Special Functions No
Mounting Type Base mounting
Number of Poles 4
Degree of Protection Front IP00
Terminal Type Lug terminals
Terminal Width 39 mm
Tightening Torque acc. IEC 60947-1 50 … 75 N·m
Mechanical Durability 10000
Lock Type Yes

Technical UL/CSA
Item Value
Tightening Torque acc. IEC 60947-1 50 … 75 N·m

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information 1SCC301232D0201

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC000216 - Switch disconnector (low voltage)
eClass V11.1 : 27371403
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland) 3660786
E-Number (Sweden) 3171227
