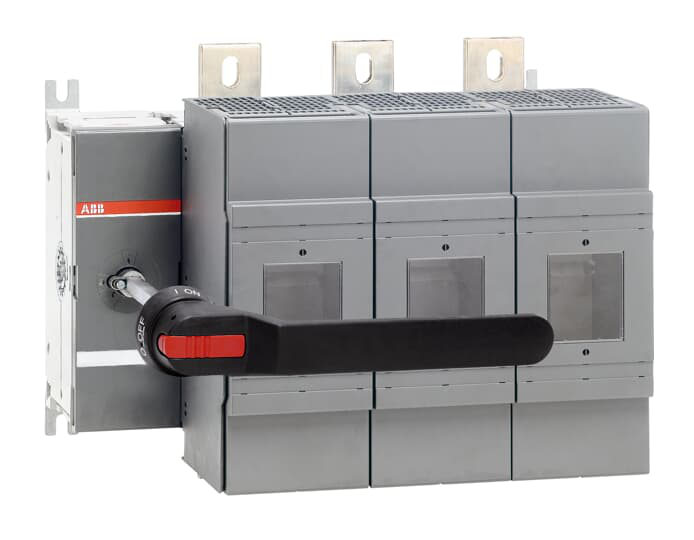

OS1250B03P SWITCH FUSE

OS1250B03P SWITCH FUSE

by ABB
$3,847.07 - $3,847.07
$3,847.07
$3,847.07 - $3,847.07
$3,847.07

Switch Fuses,Front Operated,3-pole,03 (Left Side),British Standard,D1,Handle and shaft included,



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 429 mm
Product Net Height 356 mm
Product Net Depth / Length 366 mm
Product Net Weight 29.07 kg64.09 lb

Technical
Item Value
Rated Operational Current AC-21A (Ie) (380 ... 415 V) 1250 A(500 V) 1250 A(690 V) 1250 A
Rated Operational Current AC-21B (Ie) (500 V) 1250 A(690 V) 1250 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 1250 A
Rated Operational Current AC-22B (Ie) (500 V) 1250 A(690 V) 1250 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 1000 A
Rated Operational Current AC-23B (Ie) (500 V) 1000 A(690 V) 1000 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 315 kW(400 V) 560 kW(415 V) 560 kW(500 V) 710 kW(690 V) 1000 kW
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 1250 A
Conventional Thermal Current (Ithe) Fully Enclosed 1000 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 40 kiloampere rms
Rated Conditional Short-Circuit Current (Inc) (690 V) 80 kA
Power Loss at Rated Operating Conditions per Pole 110 W
Pollution Degree 3
Handle Type Pistol handle and shaft included
Switches Operating Mechanism 03 (Left Side)
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Fuse Size D1
Fuse System British Standard
Operating Mode Front Operated
Standards IEC 60947-3
Mounting Type Base mounting
Number of Poles 3
Terminal Type Lug terminals
Terminal Width 50 mm
Tightening Torque 50 ... 75 N·m
Rated Current (In) Main Circuit 1250 A

Technical UL/CSA
Item Value
Tightening Torque 50 ... 75 N·m

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC001040 - Fuse switch disconnector
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland) 3661013
