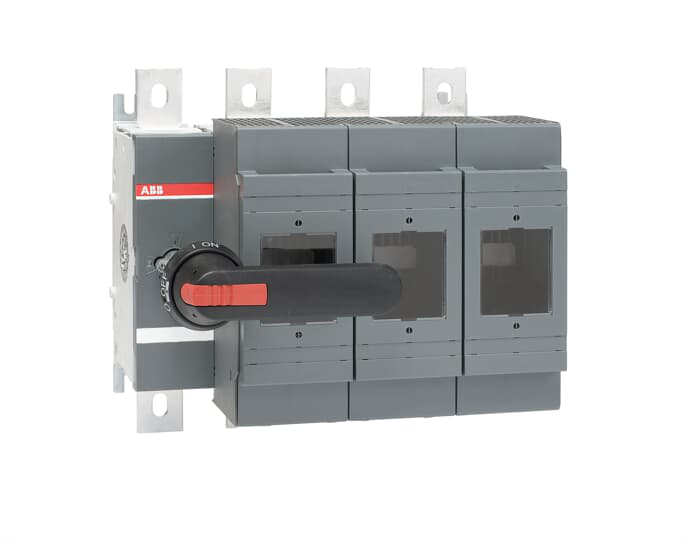

OS800D03N3P SWITCH FUSE

OS800D03N3P SWITCH FUSE

by ABB
$2,047.71 - $2,047.71
$2,047.71
$2,047.71 - $2,047.71
$2,047.71

Switch Fuses,Front Operated,4-pole,03 (Left Side),DIN,3,Handle and shaft included,Detachable Neutral Link Integrated Into the Mechanism



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 343 mm
Product Net Height 306 mm
Product Net Depth / Length 233 mm
Product Net Weight 15.046 kg33.17 lb

Technical
Item Value
Rated Operational Current AC-21A (Ie) (500 V) 800 A(690 V) 800 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 250 kW(400 V) 450 kW(415 V) 450 kW(500 V) 560 kW(690 V) 710 kW
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 800 A
Conventional Thermal Current (Ithe) Fully Enclosed 720 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 18 kiloampere rms
Rated Conditional Short-Circuit Current (Inc) (690 V) 80 kA
Power Loss at Rated Operating Conditions per Pole 65 W
Pollution Degree 3
Handle Type Pistol handle and shaft included
Fourth Pole Type Detachable Neutral Link Integrated Into the Mechanism
Switches Operating Mechanism 03 (Left Side)
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Fuse Size NH3
Fuse System DIN
Operating Mode Front Operated
Standards IEC 60947-3
Special Functions Detachable Neutral
Mounting Type Base mounting
Number of Poles 3
Terminal Type Lug terminals
Terminal Width 39 mm
Tightening Torque 50 ... 75 N·m
Rated Current (In) Main Circuit 800 A

Technical UL/CSA
Item Value
Tightening Torque 50 ... 75 N·m

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC001040 - Fuse switch disconnector
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
