DISC SW 63A N4X SCW ROT HDL BLK 3P
by Siemens
Original price
$156.07
-
Original price
$156.07
Original price
$156.07
$156.07
-
$156.07
Current price
$156.07

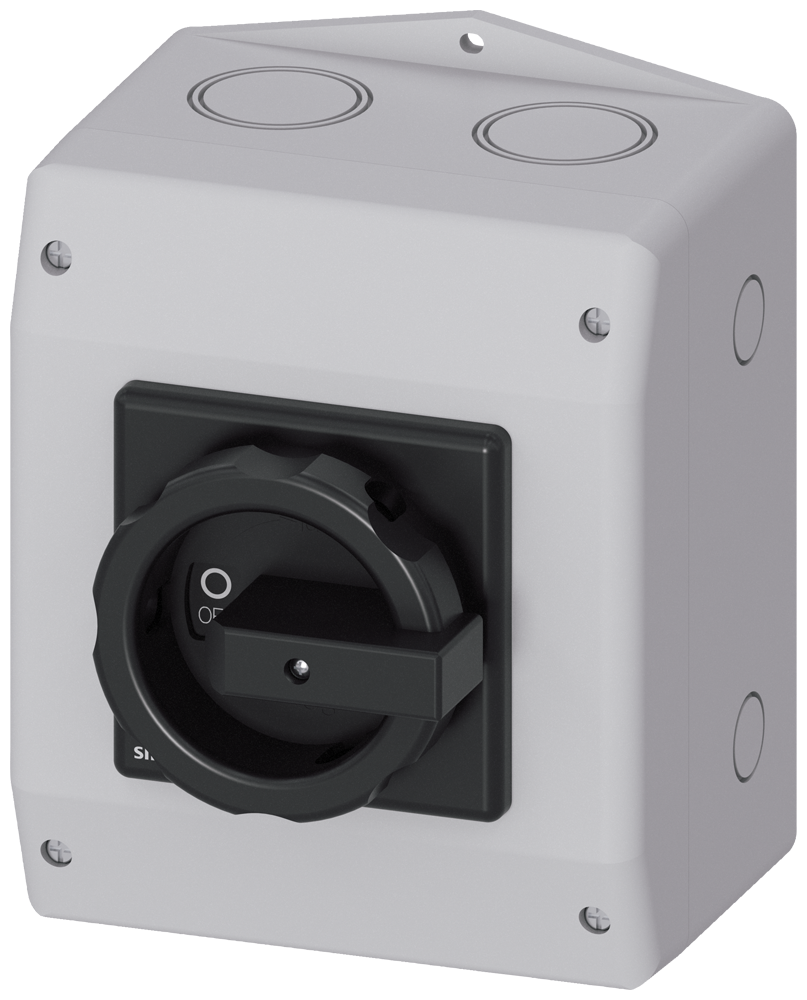

SENTRON, 3LD switch disconnector, main switch, 3- pole, Iu:63 A, Operational power / at AC-23 A at 400 V: 22 kW, molded-plastic enclosure for inch threaded joint, rotary operating mechanism, black
| Item | Value |
|---|---|
| Country of Origin | DE |
| Number of poles | 3 |
| Interlockable | true |
| Number of switches | 1 |
| Motor drive optional | false |
| Version as main switch | true |
| Colour control element | Black |
| Motor drive integrated | false |
| Version as safety switch | true |
| Rated permanent current Iu | 63 A |
| Voltage release optional | false |
| Degree of protection (NEMA) | Other |
| Version as reversing switch | false |
| Suitable for ground mounting | false |
| Max. rated operation voltage Ue AC | 690 V |
| Suitable for front mounting centre | true |
| Suitable for front mounting 4-hole | false |
| Type of control element | Short thumb-grip |
| Rated operation power at AC-3, 400 V | 19 kW |
| Degree of protection (IP), front side | IP65 |
| Rated operation power at AC-23, 400 V | 22 kW |
| Rated permanent current at AC-21, 400 V | 63 A |
| Rated permanent current at AC-23, 400 V | 43 A |
| Version as maintenance-/service switch | true |
| Version as emergency stop installation | false |
| Rated short-time withstand current lcw | 1.26 kA |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Frame clamp |
| Device construction | Built-in device fixed built-in technique |
